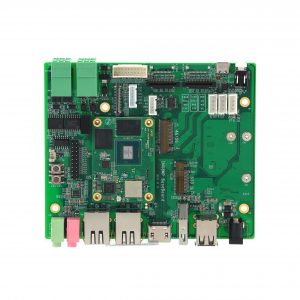

SBC-IMX8MM
¥900.00 原价为：¥900.00。¥850.00当前价格为：¥850.00。 未税价格
Feature：
- Quad-core ARM Cortex-A53,Plus Cortex-M4,Reserve Jtag;
- On-board 2GB DDR4,16GB EMMC,8MB SPI FLASH;
- On-board WiFi / Bluetooth;
- On-board Gigabit Ethernet PHY;
- Yocto Linux with source code;
- Comes with user manual, ready-made system;
Github:
https://github.com/EMTOP-TECH/SOM-IMX8MM
产品文档
库存 50 件
Compare
描述
Interface：
- USB0 Host x 2
- USB OTG x 1
- 12V Power IN x 1
- Up to 77xGPIO (including SPI,I2C,PWM,UART,SAI, and SDIO)
- USB 2.0 Host (4 Pin Connector) x 1
- UART:
- UART2 (TTL, For Debug)
- UART3 (TTL, For User)
- UART4 (TTL, For User)
- I2C x 3
- USB Touch x 1
- MIPI-CSI-2 x 1
- Fan 5V port x 1
- MIPI-DSI x 1
- Buzzer x 1
- SIM Card x 1
- TF Card x 1
- Mini PCIE Interface x 1, For 4G module and PCIE module
- CAN Bus x 1
- RS485 Bus x 1
- Input Terminal x 2 PIN (With Isolation)
- Output Terminal x 2 PIN (With Isolation)
- Headphone Output/MIC In x 1
- SPDIF Out x 1
- 1xGigabit Ethernet on-board
Packing List：
- SOM-IMX8M-MINI
- Carrier Board
- Serial Cable
- Ethernet Cable
- Power Adapter
- MIPI To HDMI/LVDS Adapter
